Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
-
Hervorheben
U channel cardboard edge protector machine
,automatic paper corner board making machine
,U shape craft paper tube machine
-
TypPapier-U-Kanal-Maschine
-
Größekann justiert werden
-
Geschwindigkeit60 Meter pro Minute
-
Video-AusgangskontrolleBereitgestellt
-
MaschinennameU-förmige Papiereckmaschine
-
plc-MarkeSchneider, Delta, Siemens
-
Arbeitsbreite100mm
-
MaschinenmodellMaschine zur Herstellung von U-förmigen Papierecken
-
HerkunftsortChina (Festland)
-
MarkennameKSPACK
-
ZertifizierungCE ISO
-
ModellnummerKSHJJ
-
Min Bestellmenge1
-
Preis19800
-
Verpackung Informationenverarbeitete Holzkistenverpackung
-
Lieferzeit30 Tage
-
ZahlungsbedingungenL/C, D/A, D/P, T/T, Western Union
-
Versorgungsmaterial-Fähigkeit30 Sätze pro Monat

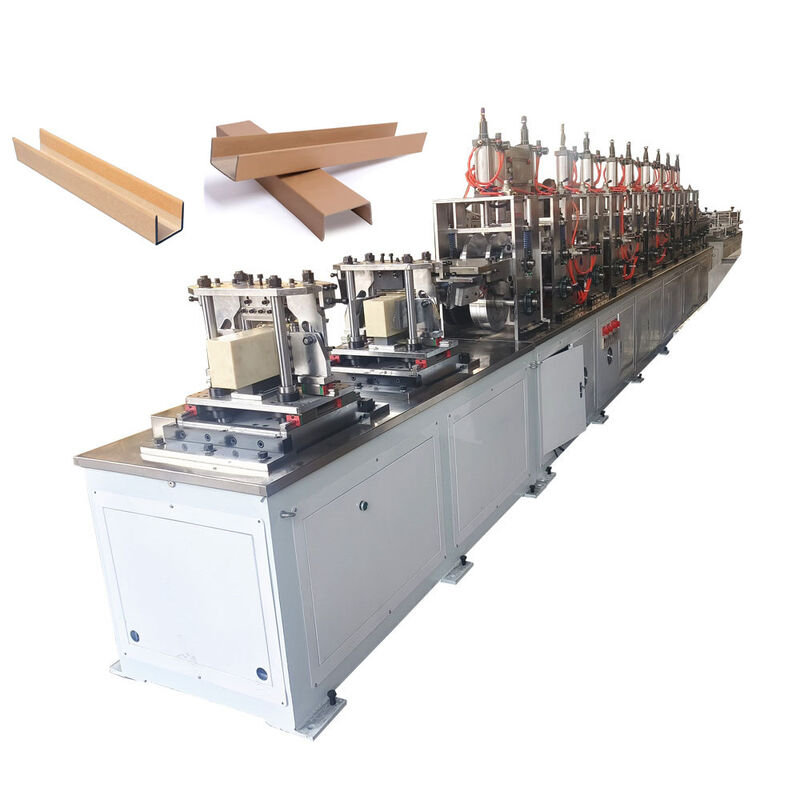

Paper U Channel Machine Cardboard U Shape Craft Paper Edge Protector Paper Corner Board Making Machine
Paper U Channel Machine
Professional cardboard U-shape craft paper edge protector and paper corner board making machine designed for industrial manufacturing applications.
Technical Specifications
| Paper Angle Protection Specification | Width: 20-100mm Thickness × Length: 50-9000mm |
| Production Speed | 0-30 m/min |
| Host Power | 7.5kW + 4.3kW |
| Control Mode | Numerical Control |
| Raw Material | Surface Paper: 150g-200g Core Paper: 300g-700g |
| Cutting Mode | Servo Tracking Cutting |
| Number of Operators | 1-2 People |
Configuration & Equipment
- Octagonal Device: Seven Groups
- Paper Holder Type: Right Angle Fixed Hoisting Paper Holder
- Glue Supply: Stainless Steel Heating Automatic Circulation Double-Sided Gluing
- Top Paper Device: Stainless Steel, Paper Basin with Transmission
- Host Mesa: Stainless Steel
- Transmission Device: Conveyor Belt and Receiving Table
- Table Cutting Device: Numerical Control
- Application Tools: One Set of Inner Hexagonal Wrenches
Dimensions & Weight
| Host Size (L×W×H) | 5100 × 840 × 1400 mm |
| Coverage Area (L×W) | 32m × 3m |
| Host Weight | 2780 kg |
| Total Weight | 4500 kg |
